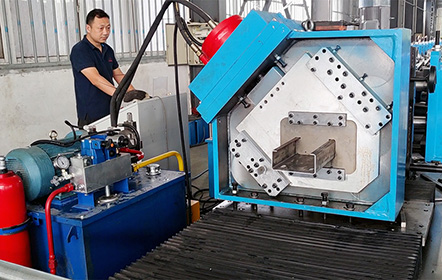

Door Frame Fully Automatic Machine


The door frame fully automatic roll forming machine is used to produce steel door/ window frame with thickness from 1.2mm up to 2mm.

Equipped with various hydraulic punching and notching unit, the machine can cut/ punch all the necessary holes/ notches online. After that, one piece of final product can be easily bended to a complete door or window frame, no need any further processing.




Technical Parameters


Item
Parameters
Coil thickness (mm)
Max. 2mm
Max speed (m/min)
6
Transmission type
Universal joint
Roll stand
18
Main power (Kw)
11
Main shaft (mm)
Ø76
Cutter material
Cr12
Cutting accuracy
10±2mm
Hydraulic station power (Kw)
5.5
Control system
PLC

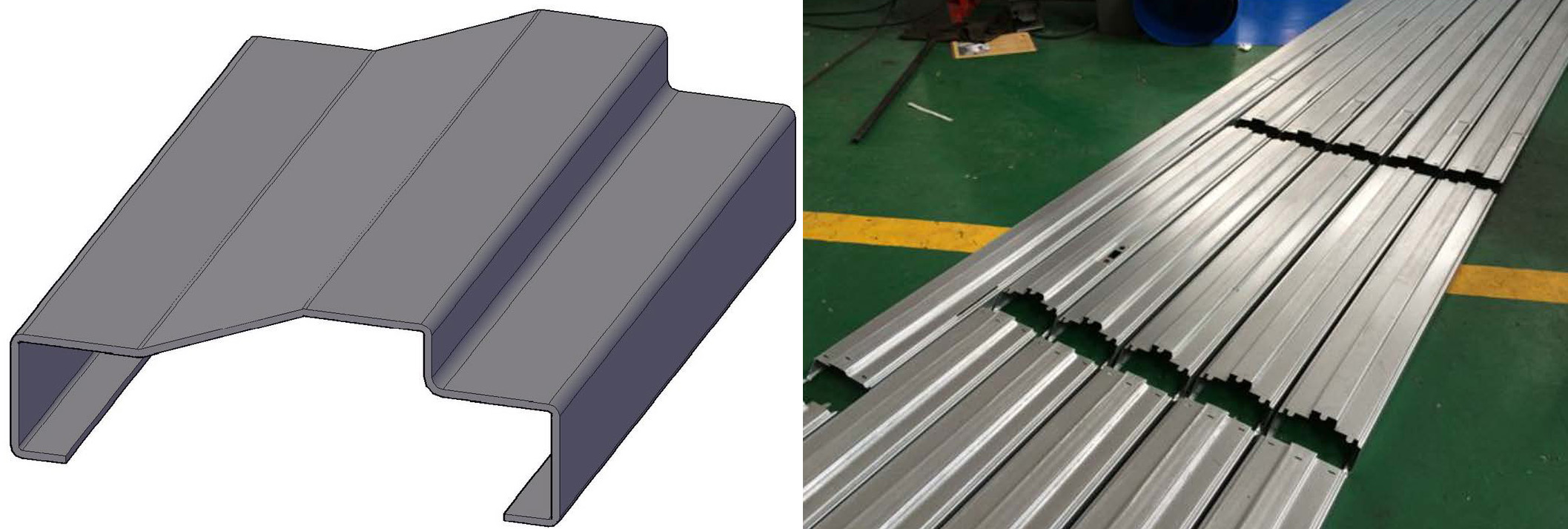

Typical Shape Profile



Typical Layout
