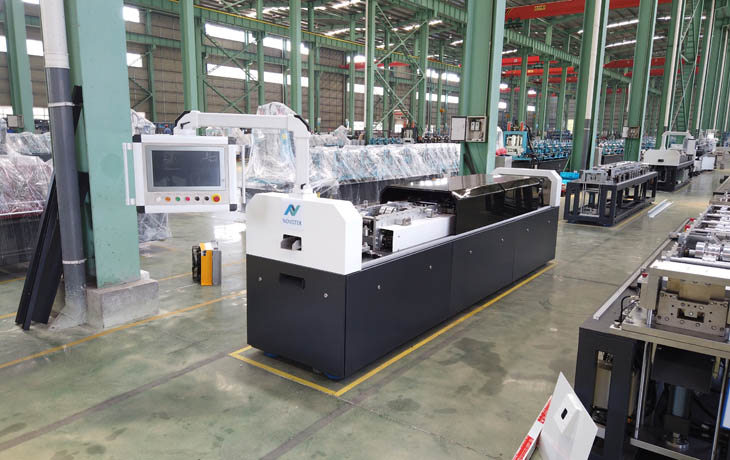

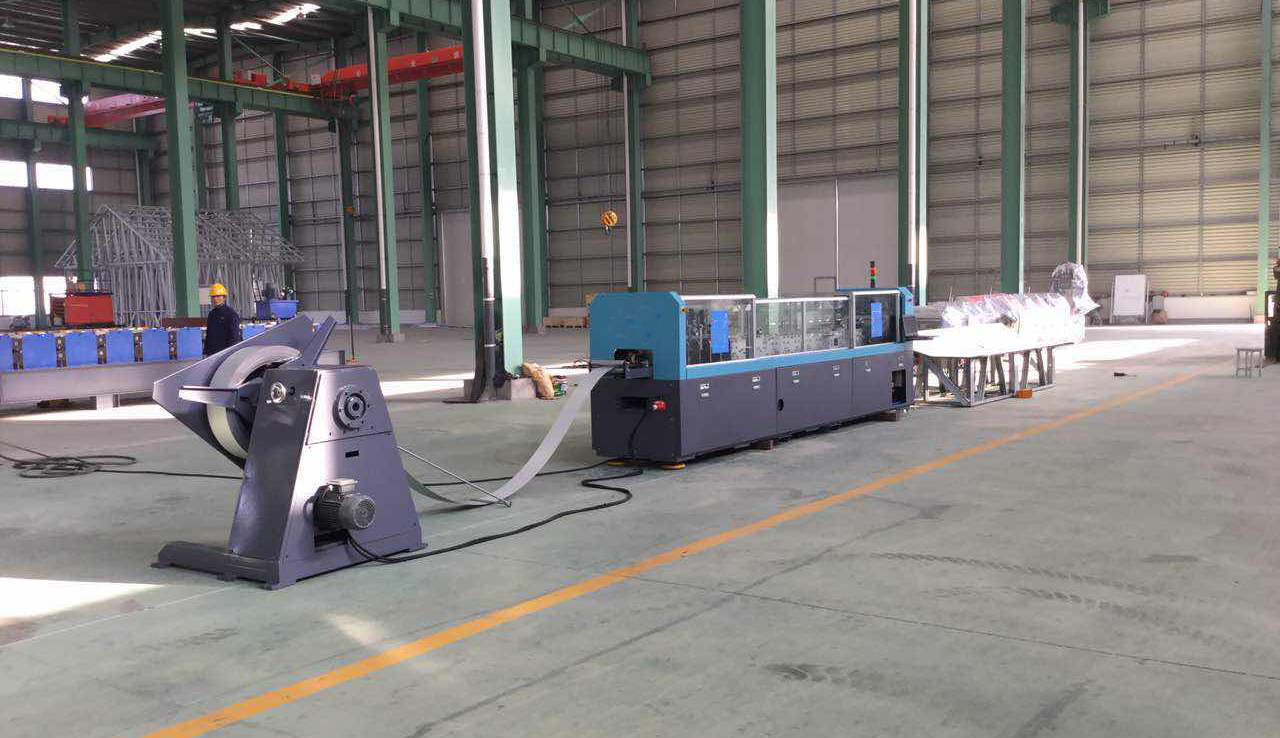

Light Gauge Steel Framing Machine (framecad machine)
Equipped with advanced building design software, the machine is used to produce one special C channel profile which can be used for 1-3 floors light gauge steel residence wall, floor and roof truss structures.
The sysmte automatic generates wall and floor panel fabrication drawings, structural layouts, cut lists, and other material reports. By automating these processes, manufacturers are saving lots of time in drafting, material reporting, data entry, manufacturing, and correcting all the errors.
Technical Parameters
|
Item
|
Parameters
|
|
Coil thickness (mm)
|
0.75-1.2mm
|
|
Profile Size (mm)
|
89 x 41 x 10
|
|
Speed (m/min)
|
35
|
|
Roll stand
|
12
|
|
Main power (Kw)
|
15
|
|
Roller material
|
GCr15
|
|
Cutter material
|
Cr12
|
|
Control system
|
Laptop + main control cabinet
|
|
Transmisstion type
|
Servo Motor + Reducer
|

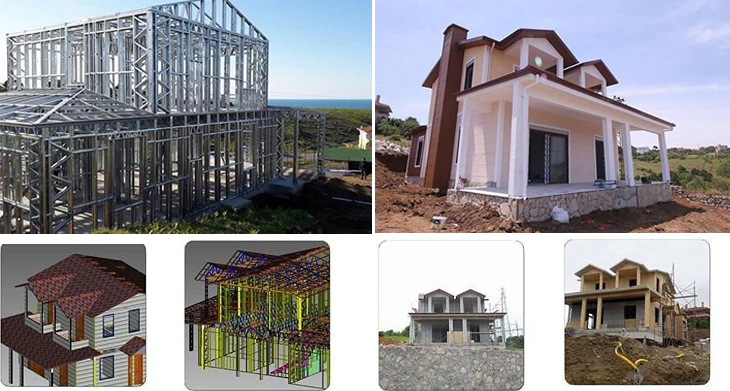

Construction Picture
Video
