U Purlin Roll Forming Machine
U Purlin Roll Forming Machine (40m/min)
NOVOTEK fast speed U purlin machine is designed to produce single size U purlins, its production capacity is up to 40m/min by adopts non-stop cut.
Fly Cut U Purlin Machine
By PLC control, the purlin length is fully automatic cut to length.
Also we have other types, such as NTK-CZ-300A fully automatic CZ purlin machine, NTK-CZ-300 semi automatic CZ machine, and NTK-CZ-400 for 400mm/4mm purlin machine.
1. Raw material: galvanized sheet, black sheet; 1.5-3.0mm

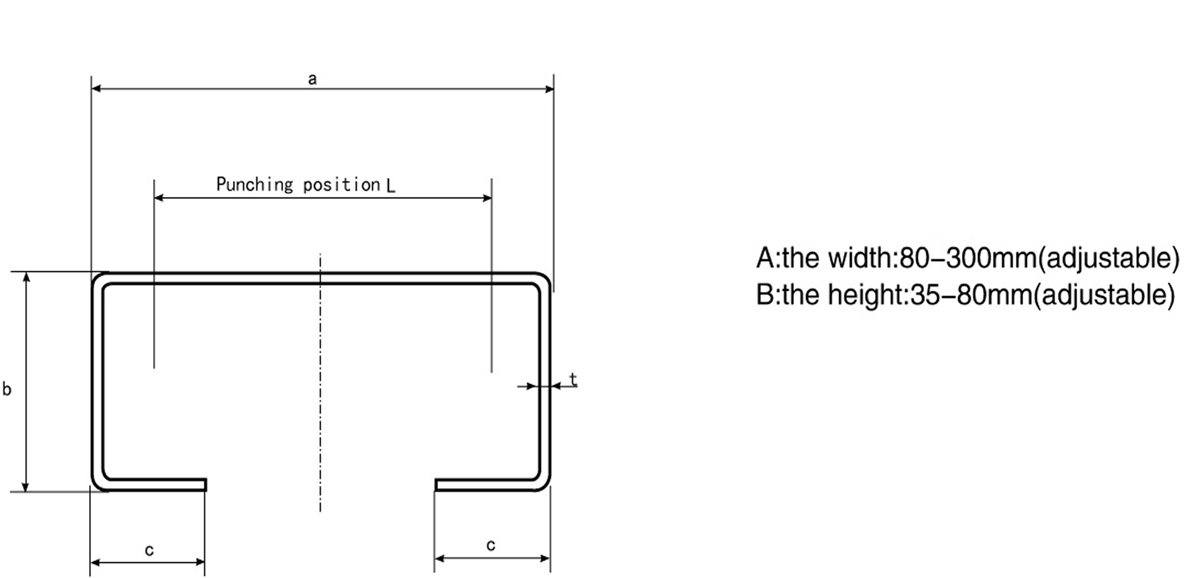

2. Product size: customized
3. Machine speed: 30-40 m/min (fly cut)

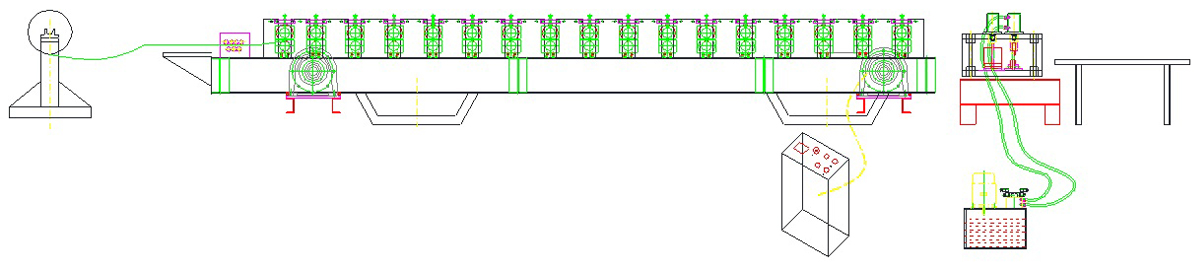

U Purlin Roll Forming Line Main Components:
Hydraulic Uncoiler
1. Type: Hydraulic expanding & active decoil
2. Load capacity: 5T

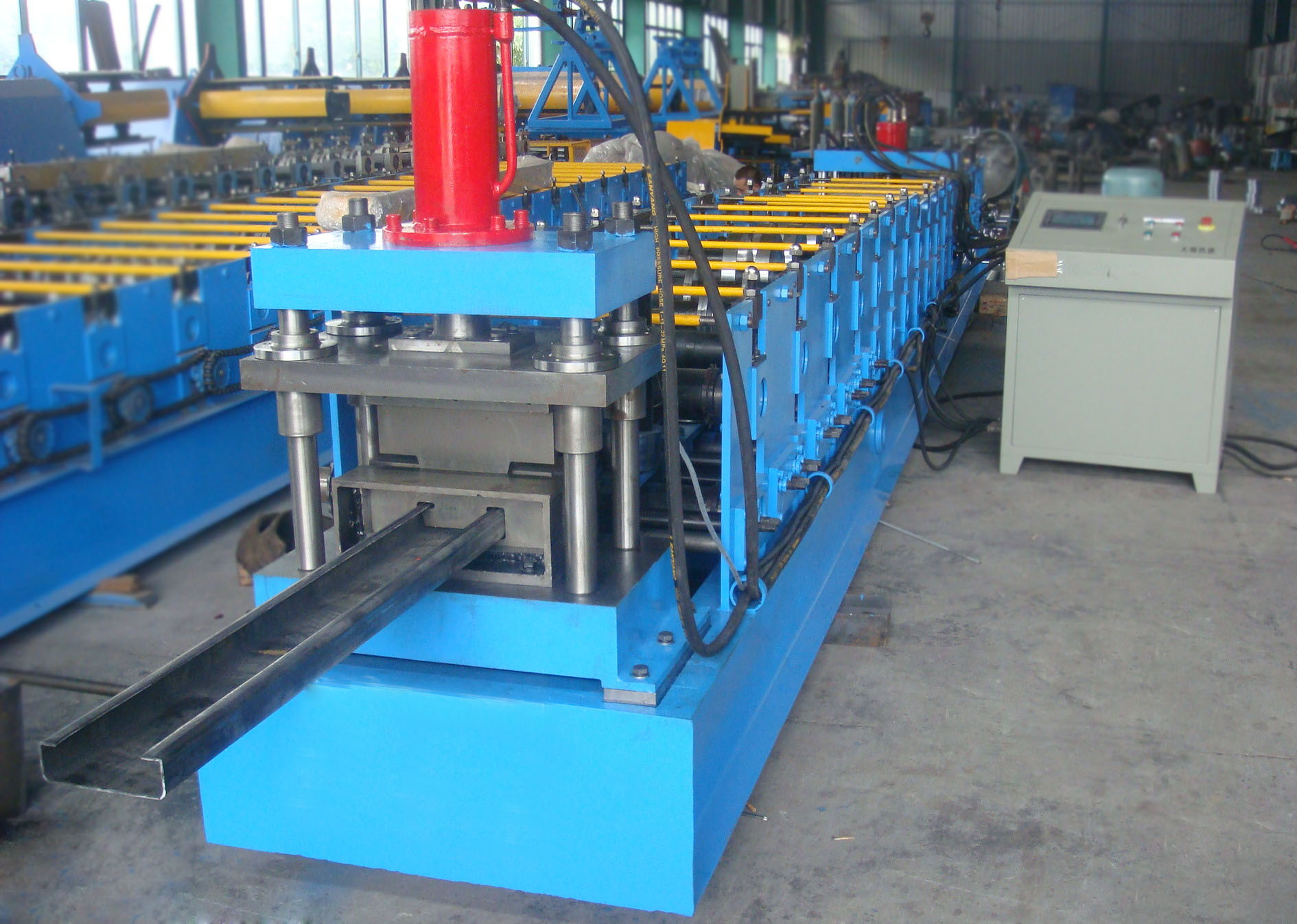

U Purlin Main Machine
1. Roller material: GCr15 with heat treatment, polishing and galvanizing.
2. Main motor: electrical motor
3. Length set: fuly automatic by PLC, continuously adjustable.
4. All motors, PLC, control panel are international famous brand.
Purlin Machine Flip Runout Table
1. 12 meters, one set.
Technical Specification of NTK-CZU-200AF Purlin Machine
| Raw Material | Type | Galvanized Sheet, Black Sheet |
| Thickness | 1.5-3.0mm | |
| U Purlin Size | Single Size | Customized |
Performance |
Speed | 30-40m/min (fly cut) |
| Length Set | PLC Control, Fully Automatic | |
| Uncoiler | Type | Hydraulic |
| Capacity | 5 T | |
Main Machine |
Main Roller Station | 12 |
| Main Drive | Electric Motor | |
| Transmission Type | Chain | |
Punching & Cutting |
Punching Unit | Optional |
| Cutter Type | Fly Cut |
