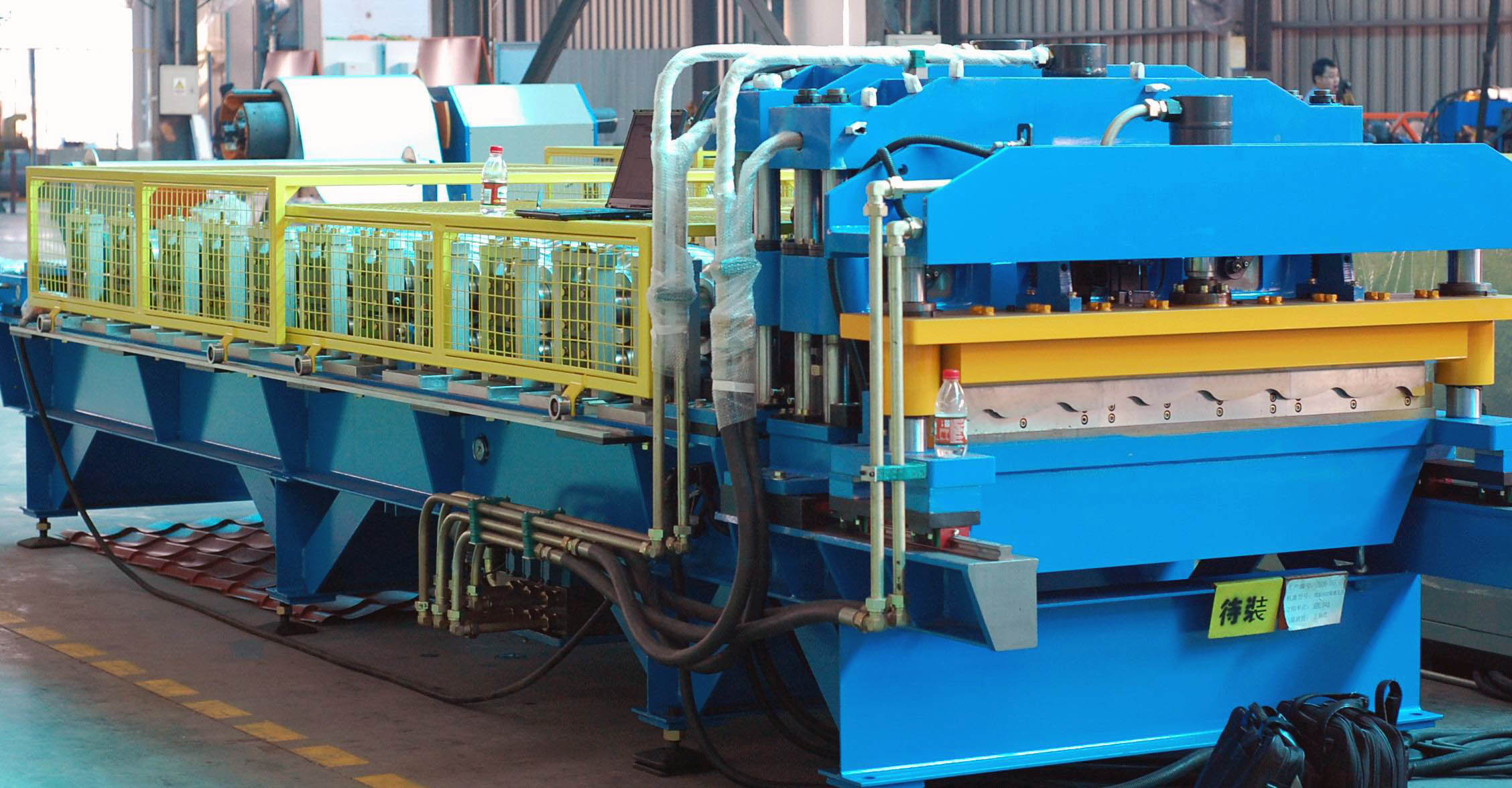

Roof Sheet Roll Forming Machine
Steel roof tile sheets are the new substitutes for traditional clayey, concrete tiles. They are popular because of their low cost, short building period; re-cycle use, and elegant appearance. They can be used as the roof of villas, luxury houses, theatres, exhibition centers.
![](https://www.novotek.co/uploadfile/2022/0812/20220812072118972.jpg)
Technical Parameters
![](https://www.novotek.co/uploadfile/2022/0812/20220812072118972.jpg)
Technical Parameters
Item
|
Parameters
|
Coil thickness (mm)
|
0.3-0.7
|
Roll stand
|
16
|
Main power (Kw)
|
5.5
|
Main shaft (mm)
|
Ø70
|
Cutter material
|
Cr12
|
Cutting accuracy
|
10±2mm
|
Hydraulic station power (Kw)
|
4
|
Control system
|
PLC
|
Main machine dimension (mm)
|
8500 x 1000 x 800
|
Typical Shape Profile
![](https://www.novotek.co/uploadfile/2014/0827/20140827054925880.jpg)
Layout
![](https://www.novotek.co/uploadfile/2014/0827/20140827054948885.jpg)
Video
