High Speed Guardrail Roll Forming Machine
High Speed Guardrail Roll Forming Machine
High speed guardrail roll forming machine is used to produce guardrail, which is the most-used steel structures in highway construction. There are 2 different models, three waves or five waves shape according to different standard.
![](https://www.czpurlinmachine.com/uploadfile/2022/0907/20220907050745230.jpg)

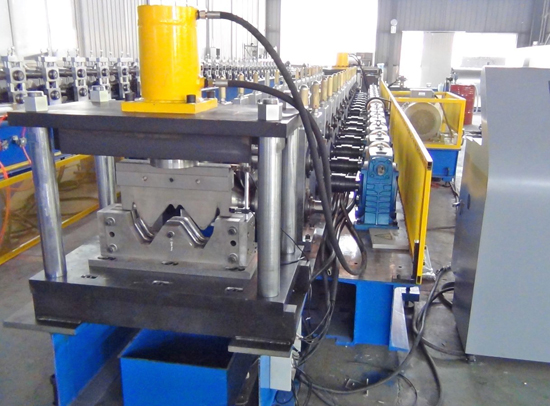

In Novotek we produce guardrail roll forming machine in different types: fixed cut type, fly punch and fly cut type, and separated punch and fly cut type, with different machine running speed.
![](https://www.czpurlinmachine.com/uploadfile/2022/0907/20220907051004982.jpg)
Also it can include a special automatic stacking machine.
![](https://www.czpurlinmachine.com/uploadfile/2022/0907/20220907051120179.jpg)
Item | Parameters |
Coil thickness (mm) | 3-4 |
Roll stand | 22 |
Main power (Kw) | 30 |
Transmission system | Gearbox |
Roller material | Gcr15 |
Main shaft (mm) | Ø 110 |
Cutter material | Cr12Mov |
Cutting accuracy | 10±2mm |
Hydraulic station power (Kw) | 11 |
Control system | PLC |
Main machine dimension (mm) | 15600x 1000 x 800 |
Typical Shape Profile
![](https://www.novotek.co/uploadfile/2014/0827/20140827063108828.jpg)
Layout
![](https://www.novotek.co/uploadfile/2014/0827/20140827063130705.jpg)
Video
